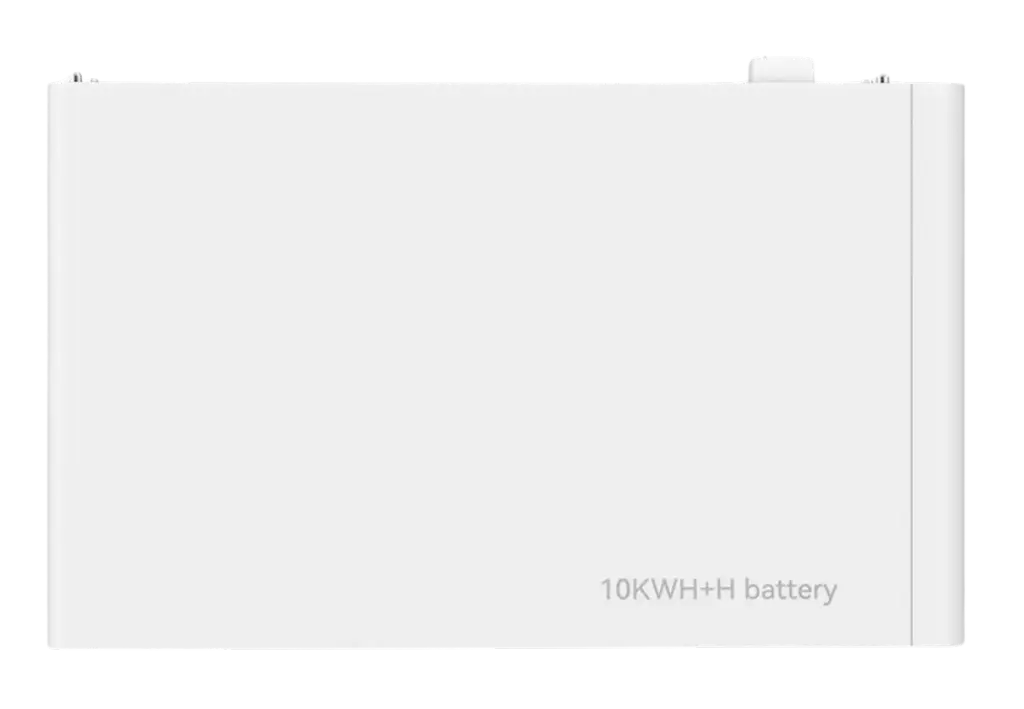

10 kWh HV battery module for HM15 and HM20 systems

https://www.acada.eu/web/image/product.template/54810/image_1920?unique=2af5e2d

10 kWh battery module for HM15 & HM20 energy storage systems – Flexible expansion made to measure This 10 kWh battery module is a key component of the modular HM15 and HM20 energy storage systems. It enables flexible expansion of your storage capacity – precisely tailored to your individual energy needs. Both series support modular configurations with up to 9 battery modules, allowing a total capacity of up to 90 kWh per system. Whether for private homes, agricultural facilities, or commercial applications: This module makes it easy to implement powerful and customized solutions. Your advantages: Scalable storage capacity – from 10 to 90 kWh per system Compact design with high energy density Reliable performance over many charge cycles Easy integration into existing HM15 or HM20 systems Important: This product includes a single 10 kWh battery module. Operation is only possible in combination with a compatible system carrier (HM15 or HM20). With this battery module, you create a future-proof, expandable solution – for sustainable, powerful, and independent energy supply at the highest level.

  • PV maximum input power
  • PV rated input voltage
  • PV maximum input voltage
  • PV input MPPT voltage range
  • PV maximum input current
  • PV input maximum short circuit current
  • MPPTs
  • Battery Capacity
  • Battery rated operating voltage
  • Battery voltage range
  • Battery protection
  • Battery Voltage
  • Output Power Inverter
  • Maximale scheinbare Ausgangsleitung
  • AC Rated Output Power (Notstrom)
  • AC rated output frequency (backup)
  • AC rated output current (backup)
  • AC maximum output current (backup)
  • AC output switching time (backup)
  • AC Output Power Set
  • AC input maximum apparent power (grid)
  • AC Input grid type
  • AC maximum input current
  • AC grid input voltage range
  • AC rated output power (grid)
  • Number of Phases

This combination does not exist.

Kontaktiere uns für eine Anfrage

Terms and Conditions




IP66 Protection Class

Extremey robust IP66-rated enclosure enables setup at most installation locations

2 men in orange safety helmet riding on red and yellow cable car during daytime

Seamless Emergency Power

<10 ms to switch seamlessly from grid operation to emergency power operation in case of blackout or planned switch-off

Temperature Resistance

Installed active heating foils protect battery cells from low temperatures down to -25°C - even on very cold Winter days

Ihr dynamisches Snippet wird hier angezeigt ... Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben

ESY SUNHOME APP

Die ESY SUNHOME APP ist die perfekte Anwendung, um die volle Kontrolle über die Speicherung von Energie zu behalten. Benutzerfreundliche Einfachheit, höchster Betriebskomfort, gesteigerte Sicherheit und absolute Stabilität des System überzeugen unsere zufriedenen Kunden.

iOS

Android

Specifications

PV maximum input power 30 kW
PV rated input voltage 650 V
PV maximum input voltage 1.000 V
PV input MPPT voltage range 160 V ~ 950 V
PV maximum input current 16 A / 32 A
PV input maximum short circuit current 24 A / 48 A
MPPTs 2
Battery Capacity 60 kWh
Battery rated operating voltage 450 V
Battery voltage range 380 V ~ 560 V
Battery protection BMS / Software / Hardware / Sicherung
Battery Voltage high voltage
Output Power Inverter 20 kW
Maximale scheinbare Ausgangsleitung 20 kVa
AC Rated Output Power (Notstrom) 400 V
AC rated output frequency (backup) 50/60 Hz
AC rated output current (backup) 29.0 A
AC maximum output current (backup) 29.0 A
AC output switching time (backup) ≤ 10 ms
AC Output Power Set 19,8 kW
AC input maximum apparent power (grid) 30 kVA
AC Input grid type 400 V 3L/N/PE
AC maximum input current 40 A
AC grid input voltage range 320 V ~ 480 V
AC rated output power (grid) 20 kW
Number of Phases three phase
