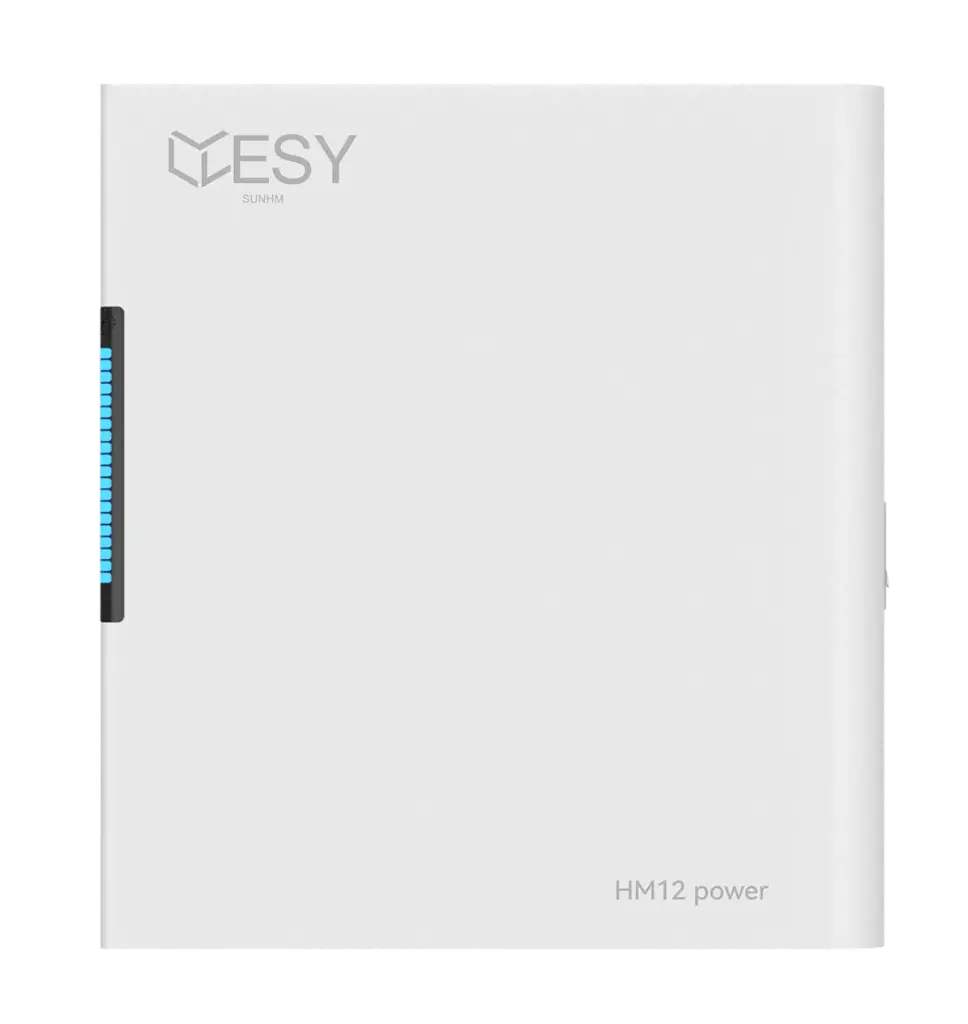

HM12 PV inverter, 1-phase, with accessories

https://www.acada.eu/web/image/product.template/54840/image_1920?unique=09c993e
The HM12 series is the perfect solution for anyone looking to reduce their energy costs while living more sustainably. This innovative system offers an efficient way to convert solar energy into usable electricity. With an output of 12 kilowatts and a storage capacity of 5–30 kilowatt-hours, the HM12 is ideal for households aiming to sustainably lower their electricity costs. Thanks to its compact design and modern appearance, the HM12 fits harmoniously into any environment. Its high-quality workmanship and durable materials ensure a long service life and high reliability. The simple installation process allows you to quickly and easily put the system into operation. The HM12 is not only powerful but also extremely user-friendly. With intelligent control, you can optimize your household’s energy consumption and make efficient use of the generated electricity. In addition, the system is equipped with various safety features that ensure safe operation. Choose renewable energy and enjoy the benefits of the HM12. Reduce your electricity costs, protect the environment, and gain independence from rising energy prices. Invest in the future – with the HM12!


  • PV maximum input power
  • PV rated input voltage
  • PV maximum input voltage
  • PV input MPPT voltage range
  • PV maximum input current
  • PV input maximum short circuit current
  • MPPTs
  • Battery Capacity
  • Battery rated operating voltage
  • Battery voltage range
  • Battery protection
  • Battery Voltage
  • Output Power Inverter
  • Maximale scheinbare Ausgangsleitung
  • AC Rated Output Power (Notstrom)
  • AC rated output frequency (backup)
  • AC rated output current (backup)
  • AC maximum output current (backup)
  • AC output switching time (backup)
  • AC Output Power Set
  • AC input maximum apparent power (grid)
  • AC Input grid type
  • AC maximum input current
  • AC grid input voltage range
  • AC rated output power (grid)
  • Number of Phases

This combination does not exist.

Kontaktiere uns für eine Anfrage

Terms and Conditions




IP66 Protection Class

Extremey robust IP66-rated enclosure enables setup at most installation locations

2 men in orange safety helmet riding on red and yellow cable car during daytime

Seamless Emergency Power

<10 ms to switch seamlessly from grid operation to emergency power operation in case of blackout or planned switch-off

Temperature Resistance

Installed active heating foils protect battery cells from low temperatures down to -25°C - even on very cold Winter days

Ihr dynamisches Snippet wird hier angezeigt ... Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben

ESY SUNHOME APP

Die ESY SUNHOME APP ist die perfekte Anwendung, um die volle Kontrolle über die Speicherung von Energie zu behalten. Benutzerfreundliche Einfachheit, höchster Betriebskomfort, gesteigerte Sicherheit und absolute Stabilität des System überzeugen unsere zufriedenen Kunden.

iOS

Android

Specifications

PV maximum input power 30 kW
PV rated input voltage 650 V
PV maximum input voltage 1.000 V
PV input MPPT voltage range 160 V ~ 950 V
PV maximum input current 16 A / 32 A
PV input maximum short circuit current 24 A / 48 A
MPPTs 2
Battery Capacity 60 kWh
Battery rated operating voltage 450 V
Battery voltage range 380 V ~ 560 V
Battery protection BMS / Software / Hardware / Sicherung
Battery Voltage high voltage
Output Power Inverter 20 kW
Maximale scheinbare Ausgangsleitung 20 kVa
AC Rated Output Power (Notstrom) 400 V
AC rated output frequency (backup) 50/60 Hz
AC rated output current (backup) 29.0 A
AC maximum output current (backup) 29.0 A
AC output switching time (backup) ≤ 10 ms
AC Output Power Set 19,8 kW
AC input maximum apparent power (grid) 30 kVA
AC Input grid type 400 V 3L/N/PE
AC maximum input current 40 A
AC grid input voltage range 320 V ~ 480 V
AC rated output power (grid) 20 kW
Number of Phases three phase


Angebot anfordern
