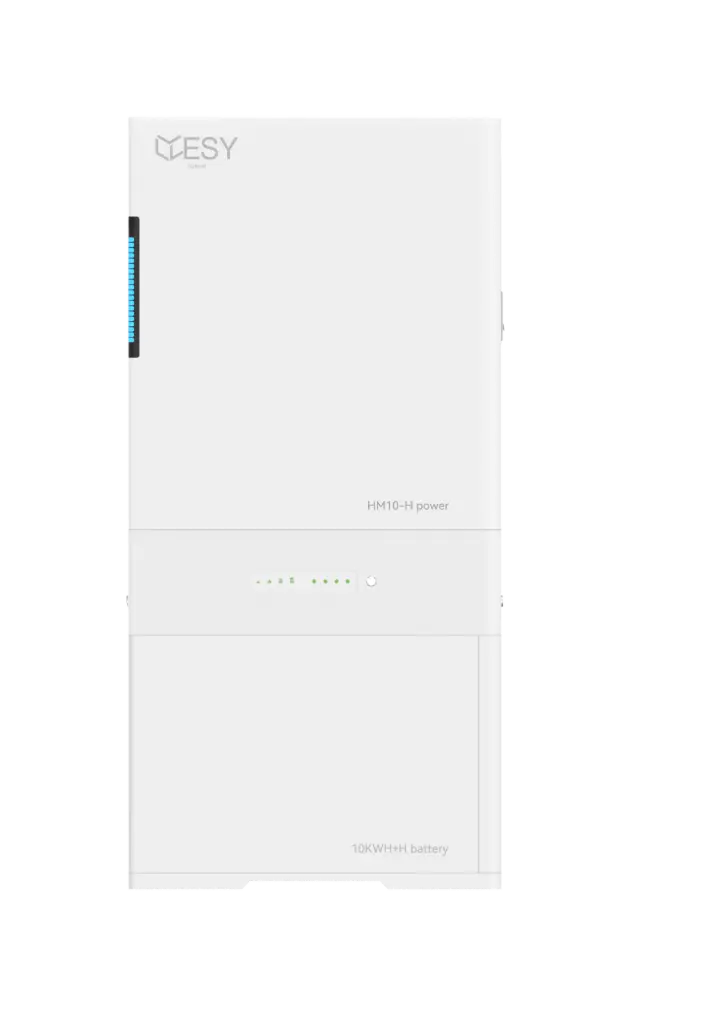

HM10-10 PV inverter 10 kW output with 10 kWh battery storage, 3-phase
Compact entry into the 10 series – ideal for single-family homes with standard base consumption.
The HM10 series is the perfect solution for anyone looking to reduce their energy costs while living sustainably. This innovative solar system offers a reliable and efficient way to convert solar energy into usable electricity. With an impressive output of 10 kilowatts and a storage capacity of 10–90 kilowatt-hours, the HM10 is ideal for households and agricultural operations aiming to lower electricity costs sustainably. Thanks to its compact design and modern appearance, the HM10 integrates seamlessly into any environment. High-quality materials and precision workmanship ensure long life and high reliability. Easy installation allows you to commission the system quickly and effortlessly. The HM10 is not only powerful but also extremely user-friendly. An intelligent control system allows you to optimize energy use in your home and efficiently utilize generated electricity. The system also includes various safety features to ensure reliable operation. Choose renewable energy and take advantage of the benefits of the HM10: Reduce your electricity costs, protect the environment, and enjoy independence from rising energy prices. Invest in the future – with the HM10.
IP66 Protection Class
Extremey robust IP66-rated enclosure enables setup at most installation locations
Seamless Emergency Power
<10 ms to switch seamlessly from grid operation to emergency power operation in case of blackout or planned switch-off
Temperature Resistance
Installed active heating foils protect battery cells from low temperatures down to -25°C - even on very cold Winter days
ESY SUNHOME APP
Die ESY SUNHOME APP ist die perfekte Anwendung, um die volle Kontrolle über die Speicherung von Energie zu behalten. Benutzerfreundliche Einfachheit, höchster Betriebskomfort, gesteigerte Sicherheit und absolute Stabilität des System überzeugen unsere zufriedenen Kunden.
iOS
Android
Specifications
| PV maximum input power | 15 kW |
| PV rated input voltage | 600 V |
| PV maximum input voltage | 1.100 V |
| PV input MPPT voltage range | 160 V ~ 1000 V |
| PV maximum input current | 15 A / 15 A |
| PV input maximum short circuit current | 20 A / 20 A |
| MPPTs | 2 |
| Battery Capacity | 10 kWh |
| Battery rated operating voltage | 400 V |
| Battery voltage range | 380 V ~ 560 V |
| Battery protection | BMS / Software / Hardware / Sicherung |
| Battery Voltage | high voltage |
| Output Power Inverter | 6,8 kW |
| Maximale scheinbare Ausgangsleitung | 6,8 kVa |
| AC Rated Output Power (Notstrom) | 400 V |
| AC rated output frequency (backup) | 50/60 Hz |
| AC rated output current (backup) | 15 A |
| AC maximum output current (backup) | 15 A |
| AC output switching time (backup) | ≤ 10 ms |
| AC Output Power Set | 10 kW |
| AC input maximum apparent power (grid) | 15 kVA |
| AC input grid type | 400 V 3L/N/PE |
| AC maximum input current | 22,8 A |
| AC grid input voltage range | 320 V ~ 480 V |
| AC rated output power (grid) | 10 kW |
| Number of Phases | three phase |
