  3. HM10-20 PV inverter 10 kW output with 20 kWh battery storage, 3-phase

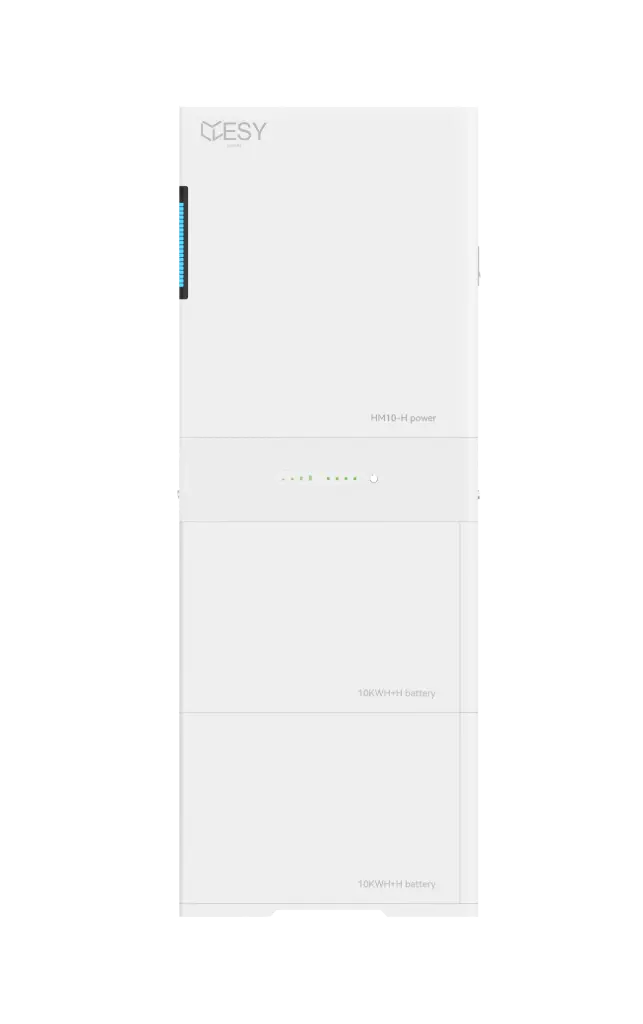

HM10-20 PV inverter 10 kW output with 20 kWh battery storage, 3-phase

https://www.acada.eu/web/image/product.template/54876/image_1920?unique=0ba6140
(0 review)

Three-phase with 20 kWh – ideal for multifamily homes or small businesses. High performance for Home owners.

The HM10 series is the perfect solution for anyone looking to reduce their energy costs while living sustainably. This innovative solar system offers an efficient way to convert solar energy into usable electricity. With an impressive output of 10 kilowatts and a built-in 20 kilowatt-hour battery storage, the HM10-20 is ideal for households and farms looking to sustainably reduce electricity costs. Thanks to its compact design and modern appearance, the HM10-20 fits seamlessly into any environment. High-quality materials and precise workmanship ensure long service life and reliability. The simple installation allows for quick and hassle-free commissioning. The HM10-20 is not only powerful, but also extremely user-friendly. An intelligent control system optimizes household energy consumption and ensures efficient use of generated electricity. The system is equipped with a range of safety features for secure operation. Choose renewable energy and benefit from the advantages of the HM10-20: Lower your electricity costs, protect the environment, and enjoy independence from rising energy prices. Invest in the future – with the HM10-20!

Listenpreis – Individuelles Angebot mit Rabatt anfordern

13,303.00 € 13303.0 EUR 13,303.00 € Tax Excluded

13,303.00 € Tax Excluded

Price upon request

  • PV maximum input power
  • PV rated input voltage
  • PV maximum input voltage
  • PV input MPPT voltage range
  • PV maximum input current
  • PV input maximum short circuit current
  • MPPTs
  • Battery Capacity
  • Battery rated operating voltage
  • Battery voltage range
  • Battery protection
  • Battery Voltage
  • Output Power Inverter
  • Maximale scheinbare Ausgangsleitung
  • AC Rated Output Power (Notstrom)
  • AC rated output frequency (backup)
  • AC rated output current (backup)
  • AC maximum output current (backup)
  • AC output switching time (backup)
  • AC input maximum apparent power (grid)
  • AC input grid type
  • AC maximum input current
  • AC grid input voltage range
  • AC rated output power (grid)
  • Number of Phases

This combination does not exist.

Kontaktiere uns für eine Anfrage

Terms and Conditions




Ihr dynamisches Snippet wird hier angezeigt ... Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben

ESY SUNHOME APP

Die ESY SUNHOME APP ist die perfekte Anwendung, um die volle Kontrolle über die Speicherung von Energie zu behalten. Benutzerfreundliche Einfachheit, höchster Betriebskomfort, gesteigerte Sicherheit und absolute Stabilität des System überzeugen unsere zufriedenen Kunden.

iOS

Android

Specifications

PV maximum input power 15 kW
PV rated input voltage 600 V
PV maximum input voltage 1.100 V
PV input MPPT voltage range 160 V ~ 1000 V
PV maximum input current 15 A / 15 A
PV input maximum short circuit current 20 A / 20 A
MPPTs 2
Battery Capacity 20 kWh
Battery rated operating voltage 400 V
Battery voltage range 380 V ~ 560 V
Battery protection BMS / Software / Hardware / Sicherung
Battery Voltage high voltage
Output Power Inverter 10 kW
Maximale scheinbare Ausgangsleitung 10 kVA
AC Rated Output Power (Notstrom) 400 V
AC rated output frequency (backup) 50/60 Hz
AC rated output current (backup) 15 A
AC maximum output current (backup) 15 A
AC output switching time (backup) ≤ 10 ms
AC input maximum apparent power (grid) 15 kVA
AC input grid type 400 V 3L/N/PE
AC maximum input current 22,8 A
AC grid input voltage range 320 V ~ 480 V
AC rated output power (grid) 10 kW
Number of Phases three phase
