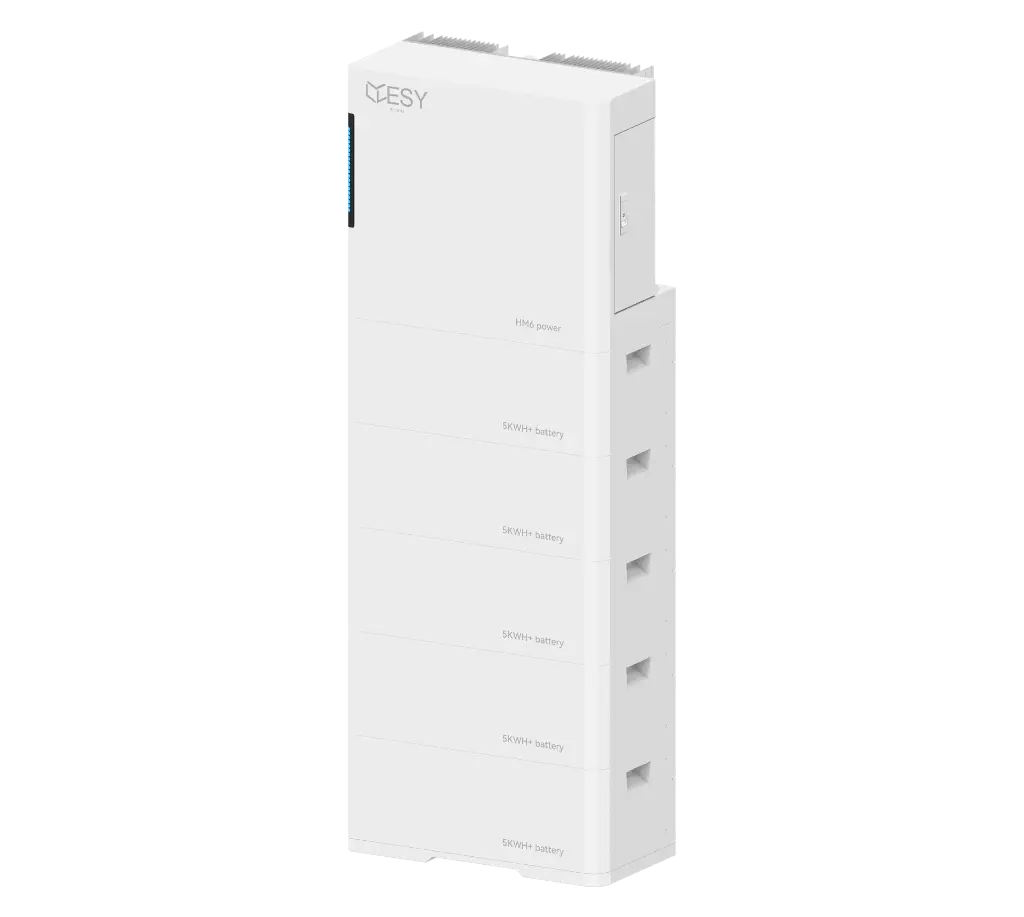

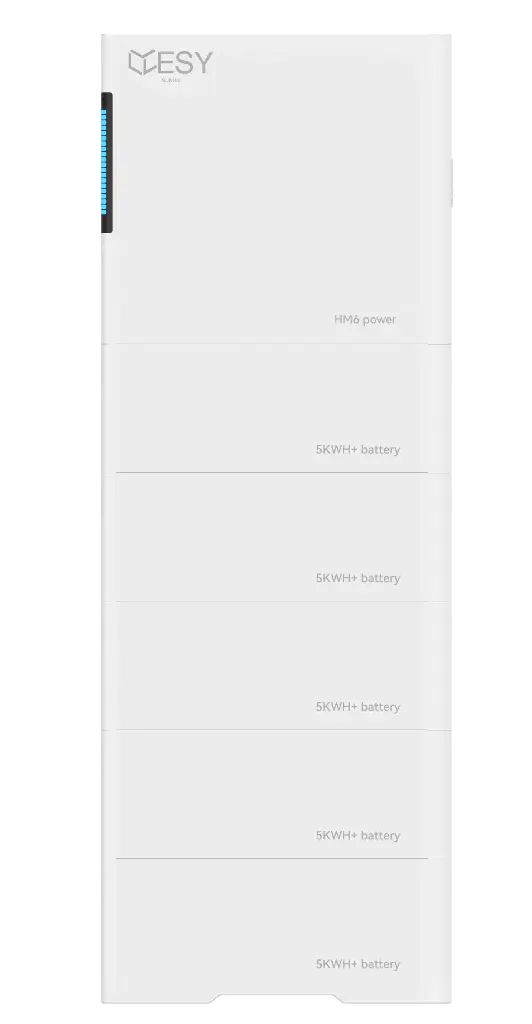

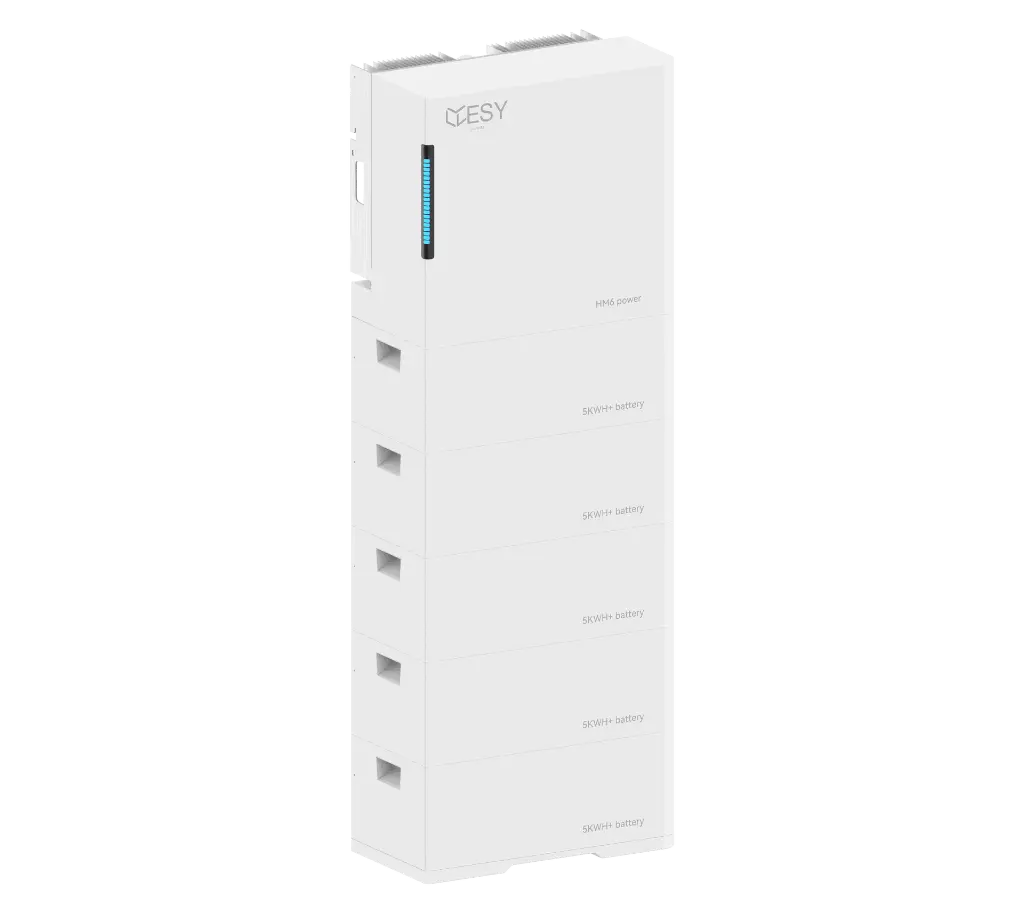

HM6-25 PV Inverter 6 kW with Battery 25 kWh, 1 Phase

https://www.acada.eu/web/image/product.template/54294/image_1920?unique=ae3e620
The HM6 series is the perfect solution for anyone looking to reduce their energy costs while living in an environmentally friendly way. This innovative system offers an efficient way to convert solar energy into usable electrical energy. With an output power of 6 kilowatts and a storage capacity of 5-30 kilowatt-hours, the HM6 is ideal for households that want to sustainably lower their electricity costs.

Thanks to its compact design and modern aesthetics, the HM6 blends harmoniously into any environment. The high-quality craftsmanship and durable materials ensure a long lifespan and reliability. The easy installation allows you to get the system up and running quickly and effortlessly.

The HM6 is not only powerful but also extremely user-friendly. With intelligent control, you can optimize energy consumption in your home and efficiently utilize the generated electricity. Additionally, the system is equipped with various safety features that ensure safe operation.

Embrace renewable energy and take advantage of the benefits of the HM6. Reduce your electricity costs, protect the environment, and enjoy independence from rising energy prices. Invest in the future – with the HM6!


The product is exempt from sales tax according to §12 Abs. 3 UstG, provided that the conditions set by the legislator are met. Please contact us.

  • PV maximum input power
  • PV rated input voltage
  • PV maximum input voltage
  • PV input starting voltage
  • PV input MPPT voltage range
  • PV maximum input current
  • PV input maximum short circuit current
  • MPPTs
  • Battery Capacity
  • Battery rated operating voltage
  • Battery voltage range
  • Battery protection
  • Battery Voltage
  • Output Power Inverter
  • Maximale scheinbare Ausgangsleitung
  • AC Rated Output Power (Notstrom)
  • AC rated output frequency (backup)
  • AC rated output current (backup)
  • AC output switching time (backup)
  • AC grid input voltage range
  • AC rated output power (grid)
  • Number of Phases

This combination does not exist.

Kontaktiere uns für eine Anfrage

Terms and Conditions




600 x 305 x 1658 mm
Dimensions
293 kg
Weight
6
Elements stacked

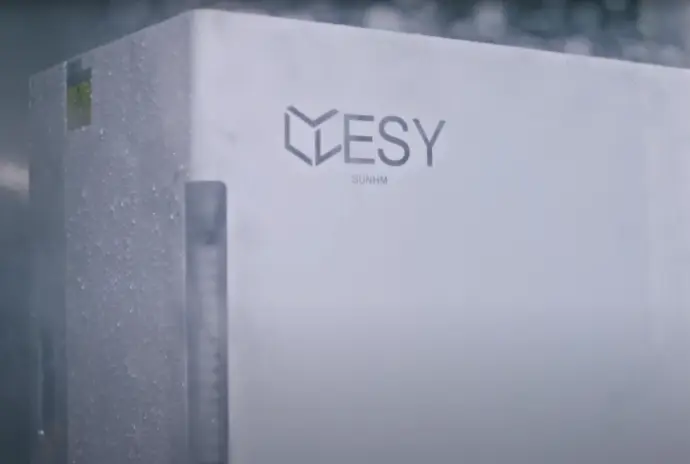

IP66 Protection Class

Extremey robust IP66-rated enclosure enables setup at most installation locations

2 men in orange safety helmet riding on red and yellow cable car during daytime

Seamless Emergency Power

<10 ms to switch seamlessly from grid operation to emergency power operation in case of blackout or planned switch-off

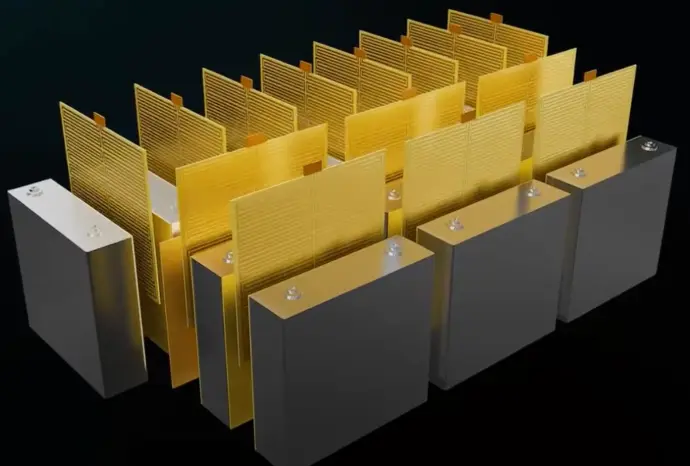

Temperature Resistance

Installed active heating foils protect battery cells from low temperatures down to -25°C - even on very cold Winter days

Ihr dynamisches Snippet wird hier angezeigt ... Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben

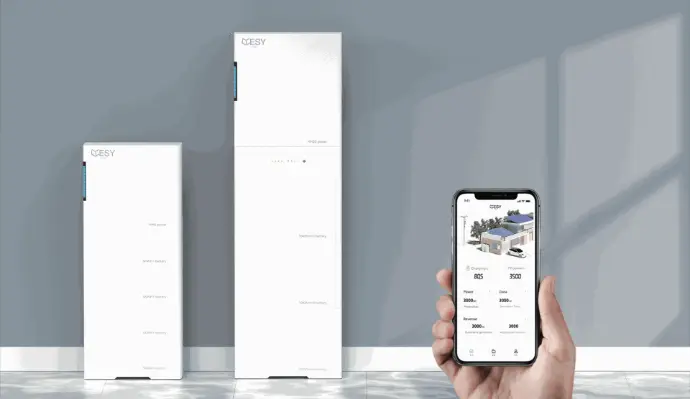

ESY SUNHOME APP

Die ESY SUNHOME APP ist die perfekte Anwendung, um die volle Kontrolle über die Speicherung von Energie zu behalten. Benutzerfreundliche Einfachheit, höchster Betriebskomfort, gesteigerte Sicherheit und absolute Stabilität des System überzeugen unsere zufriedenen Kunden.

iOS

Android

Specifications

PV maximum input power 8 kW
PV rated input voltage 360 V
PV maximum input voltage 550 V
PV input starting voltage 150 V
PV input MPPT voltage range 100 V ~ 540 V
PV maximum input current 15 A / 15 A
PV input maximum short circuit current 20 A / 20 A
MPPTs 1
Battery Capacity 25 kWh
Battery rated operating voltage 51.2 V
Battery voltage range 40.8 V ~ 57.6 V
Battery protection BMS / Software / Hardware / Sicherung
Battery Voltage Low voltage (48V)
Output Power Inverter 6 kW
Maximale scheinbare Ausgangsleitung 6 kVa
AC Rated Output Power (Notstrom) 230 V
AC rated output frequency (backup) 50/60 Hz
AC rated output current (backup) 26.09 A
AC output switching time (backup) ≤ 10 ms
AC grid input voltage range 184 V ~ 276 V
AC rated output power (grid) 6 kW
Number of Phases single phase
