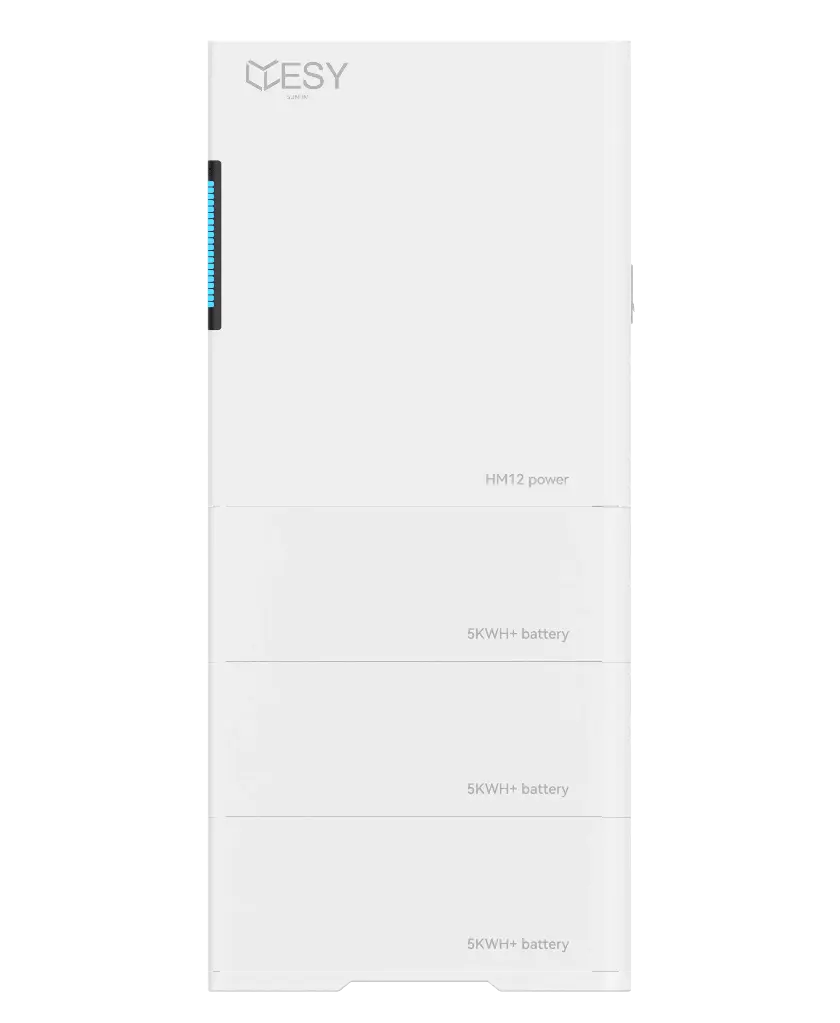

HM12-15 PV inverter with 12 kW output power and 15 kWh battery storage, 1 phase

https://www.acada.eu/web/image/product.template/54300/image_1920?unique=78ab644
(0 review)
15 kWh 12 kW single phase

15 kWh and up to 12 kW backup – solid solution for families and tech lovers

9,424.80 € 9424.8 EUR 9,424.80 € Tax Excluded

9,424.80 € Tax Excluded

Price upon request

  • PV maximum input power
  • Dimensions
  • Stacked Elements
  • PV rated input voltage
  • PV maximum input voltage
  • PV input starting voltage
  • PV input MPPT voltage range
  • PV maximum input current
  • PV input maximum short circuit current
  • MPPTs
  • Battery Capacity
  • Battery rated operating voltage
  • Battery voltage range
  • Battery protection
  • Battery Voltage
  • Output Power Inverter
  • Maximale scheinbare Ausgangsleitung
  • AC Rated Output Power (Notstrom)
  • AC rated output frequency (backup)
  • AC rated output current (backup)
  • AC output switching time (backup)
  • AC grid input voltage range
  • AC rated output power (grid)
  • Number of Phases

This combination does not exist.

Contact Us
Warranty incl.
Fast Shipping
CE Certified
Expert Consulting
The HM12 series is the perfect solution for anyone looking to reduce their energy costs while living in an environmentally friendly way. This innovative system offers an efficient way to convert solar energy into usable electrical energy. With an output of 12 kilowatts and a storage capacity of 5-30 kilowatt-hours, the HM12 is ideal for households that want to sustainably lower their electricity costs.

Thanks to its compact design and modern aesthetics, the HM12 blends harmoniously into any environment. The high-quality craftsmanship and durable materials ensure a long lifespan and reliability. The easy installation allows you to get the system up and running quickly and effortlessly.

The HM12 is not only powerful but also extremely user-friendly. With intelligent control, you can optimize energy consumption in your home and efficiently utilize the generated electricity. Additionally, the system is equipped with various safety features that ensure safe operation.

Embrace renewable energy and take advantage of the benefits of the HM12. Reduce your electricity costs, protect the environment, and enjoy independence from rising energy prices. Invest in the future – with the HM12!

The product is exempt from sales tax according to §12 Abs. 3 UstG, provided that the conditions set by the legislator are met. Please contact us.

Terms and Conditions




Your Individual Complete System

Configure your PV system with matching storage — free and without obligation

Configure PV System with Storage

Put together your photovoltaic system with matching battery storage — individually calculated based on location, roof area and consumption.

Configure now
Retrofit Storage

Already have a PV system? Find the right battery storage — matched to your existing system and your needs.

Find storage
Maximum Performance

Highly efficient energy solutions for maximum self-consumption

Warranty Included

10 years manufacturer warranty on all storage products

Professional Installation

By certified specialists near you

Personal Consulting

Individual consulting for your energy project

IP66 Protection Class

Extremey robust IP66-rated enclosure enables setup at most installation locations

2 men in orange safety helmet riding on red and yellow cable car during daytime

Seamless Emergency Power

<10 ms to switch seamlessly from grid operation to emergency power operation in case of blackout or planned switch-off

Temperature Resistance

Installed active heating foils protect battery cells from low temperatures down to -25°C - even on very cold Winter days

Ihr dynamisches Snippet wird hier angezeigt ... Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben

ESY SUNHOME APP

Die ESY SUNHOME APP ist die perfekte Anwendung, um die volle Kontrolle über die Speicherung von Energie zu behalten. Benutzerfreundliche Einfachheit, höchster Betriebskomfort, gesteigerte Sicherheit und absolute Stabilität des System überzeugen unsere zufriedenen Kunden.

iOS

Android

Specifications

Energy Storage
PV maximum input power 18 kW
PV rated input voltage 360 V
PV maximum input voltage 550 V
PV input starting voltage 150 V
PV input MPPT voltage range 100 V ~ 540 V
PV maximum input current 30 A / 30 A
PV input maximum short circuit current 40 A / 40 A
MPPTs 1
Battery Capacity 15 kWh
Battery rated operating voltage 51.2 V
Battery voltage range 40.8 V ~ 57.6 V
Battery protection BMS / Software / Hardware / Sicherung
Battery Voltage Low voltage (48V)
Output Power Inverter 12 kW
Maximale scheinbare Ausgangsleitung 12 kVA
AC Rated Output Power (Notstrom) 230 V
AC rated output frequency (backup) 50/60 Hz
AC rated output current (backup) 52.2 A
AC output switching time (backup) ≤ 10 ms
AC grid input voltage range 184 V ~ 276 V
AC rated output power (grid) 12 kW
Number of Phases single phase
Others
Dimensions 600 x 305 x 1218 mm
Stacked Elements 4
Physical Properties
Weight 180 kg
