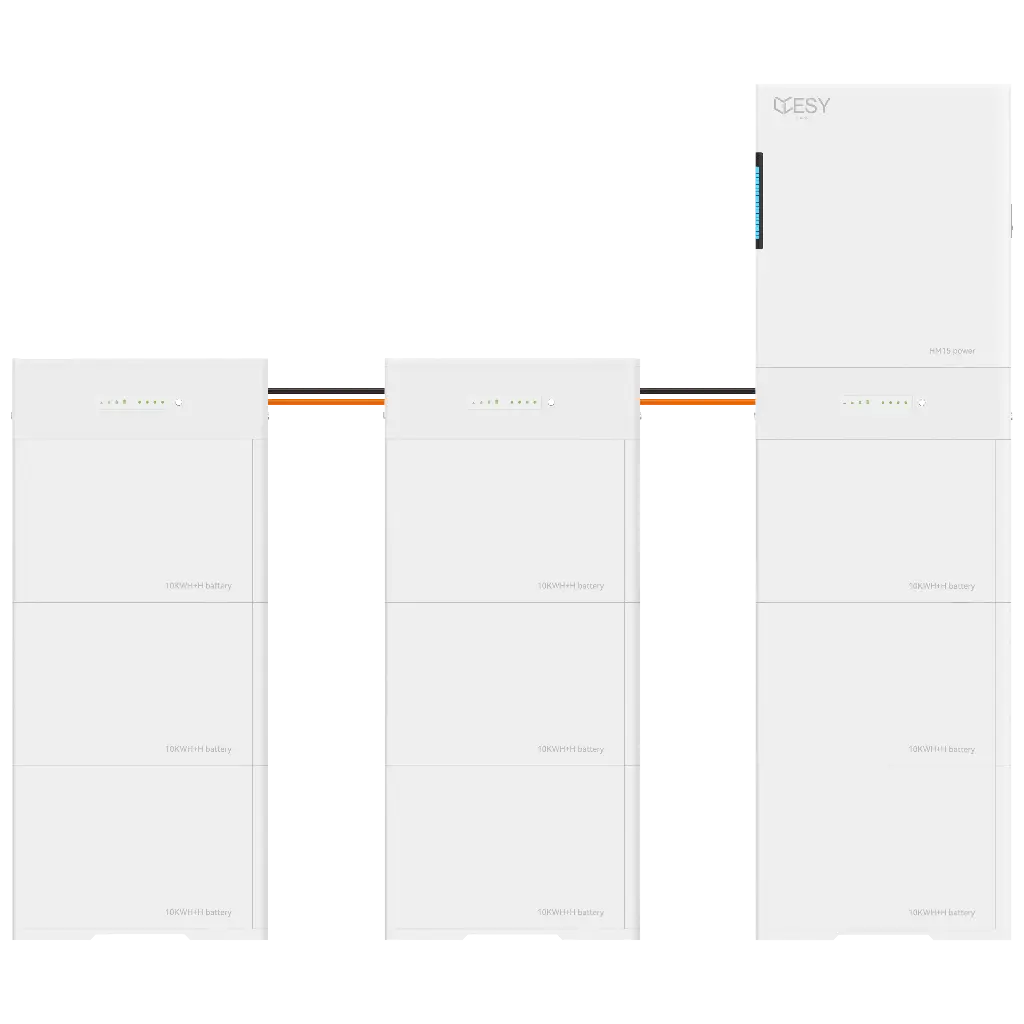

HM15-90 PV inverter with 15 kW output power and 90 kWh battery storage, 3 phases
90 kWh
15 kW
three phase
High-performance 90 kWh system – for large-scale needs and reserves.
Warranty incl.
Fast Shipping
CE Certified
Expert Consulting
The HM15 series is the perfect solution for anyone looking to reduce their energy costs while living in an environmentally friendly way. This innovative solar system offers an efficient way to convert solar energy into usable electrical energy. With an impressive output of 15 kilowatts and a storage capacity of 10-90 kilowatt-hours, the HM15 is ideal for use in households and farms that want to sustainably reduce their electricity costs.
Thanks to its compact design and modern aesthetics, the HM15 blends harmoniously into any environment. The high-quality craftsmanship and durable materials ensure a long lifespan and reliability. The easy installation allows you to get the system up and running quickly and effortlessly.
The HM15 is not only powerful but also extremely user-friendly. With intelligent control, you can optimize energy consumption in your home and efficiently utilize the generated electricity. Additionally, the system is equipped with various safety features that ensure safe operation.
Embrace renewable energy and take advantage of the benefits of the HM15. Reduce your electricity costs, protect the environment, and enjoy independence from rising energy prices. Invest in the future – with the HM15!
Your Individual Complete System
Configure your PV system with matching storage — free and without obligation
Maximum Performance
Highly efficient energy solutions for maximum self-consumption
Warranty Included
10 years manufacturer warranty on all storage products
Professional Installation
By certified specialists near you
Personal Consulting
Individual consulting for your energy project
Specifications
| Energy Storage | |
|---|---|
| PV maximum input power | 22,5 kWh |
| PV rated input voltage | 600 V |
| PV maximum input voltage | 1.100 V |
| PV input MPPT voltage range | 160 V ~ 1000 V |
| PV maximum input current | 15 A / 30 A |
| PV input maximum short circuit current | 20 A / 40 A |
| MPPTs | 2 |
| Battery Capacity | 90 kWh |
| Battery rated operating voltage | 450 V |
| Battery voltage range | 380 V ~ 560 V |
| Battery protection | BMS / Software / Hardware / Sicherung |
| Output Power Inverter | 15 kW |
| Maximale scheinbare Ausgangsleitung | 15 kVA |
| AC Rated Output Power (Notstrom) | 400 V |
| AC rated output frequency (backup) | 50/60 Hz |
| AC rated output current (backup) | 22,8 kW |
| AC maximum output current (backup) | 22,8 A |
| AC output switching time (backup) | ≤ 10 ms |
| AC input maximum apparent power (grid) | 22.5 kVA |
| AC input grid type | 400 V 3L/N/PE |
| AC maximum input current | 32.6 A |
| AC grid input voltage range | 320 V ~ 480 V |
| AC rated output power (grid) | 15 kW |
| Number of Phases | three phase |
| Battery Voltage | high voltage |
| Others | |
|---|---|
| Dimensions | (660 x 270 x 2098 mm) + (660 x 270 x 1408 mm) x2 |
| Stacked Elements | 10 |
| Physical Properties | |
|---|---|
| Weight | 950 kg |
