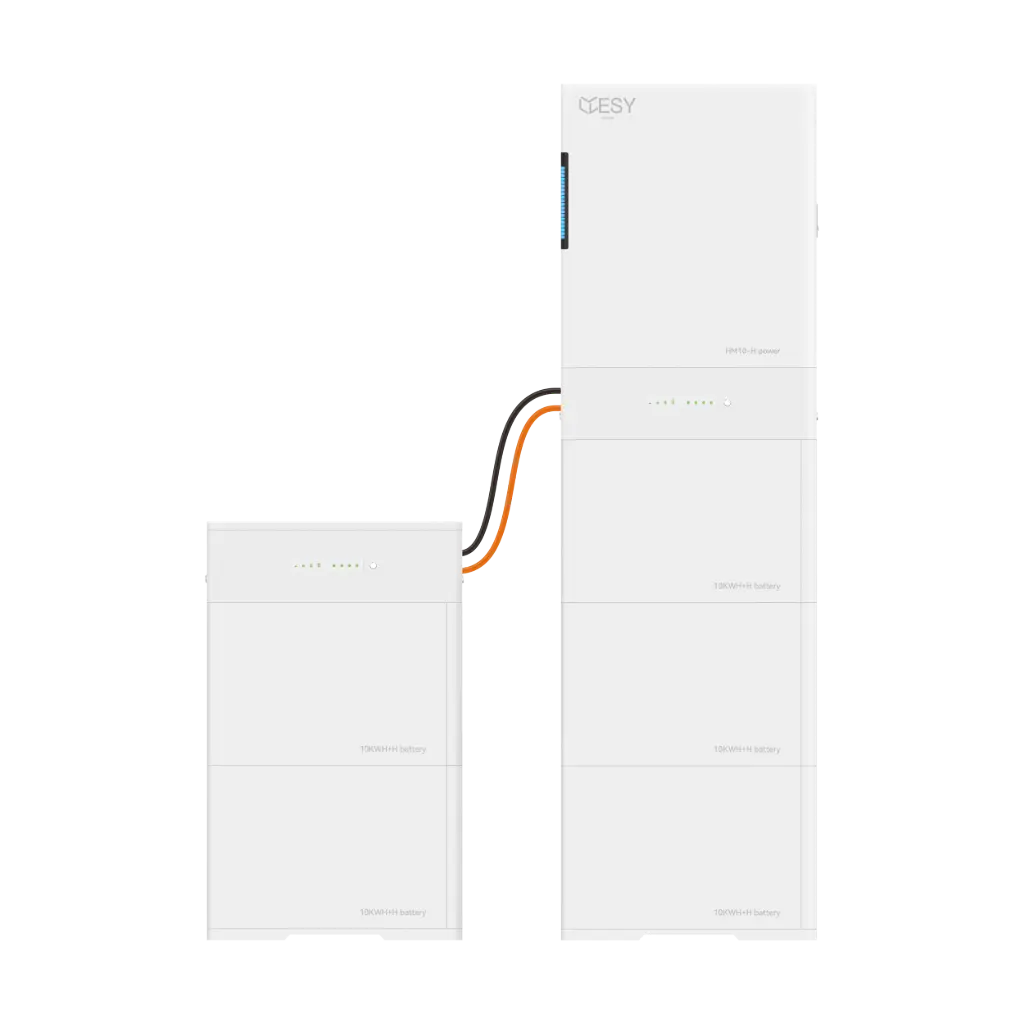

HM10-50 PV inverter 10 kW output with 50 kWh battery storage, 3-phase
Versatile energy hub – 50 kWh for businesses & homes with high consumption.
The HM10 series is the perfect solution for anyone looking to reduce their energy costs while living sustainably. This innovative solar system offers an efficient way to convert solar energy into usable electricity. With an output of 10 kilowatts and a built-in battery storage of 50 kilowatt-hours, the HM10-50 is ideal for households and farms seeking to lower electricity costs sustainably. Thanks to its compact design and modern appearance, the HM10-50 integrates seamlessly into any environment. High-quality materials and precision workmanship ensure a long service life and maximum reliability. Simple installation allows for fast and trouble-free commissioning. The HM10-50 is not only powerful but also extremely user-friendly. An intelligent control system helps you optimize your home's energy consumption and use the generated electricity efficiently. The system also includes a variety of safety features to ensure reliable operation. Choose renewable energy and benefit from the advantages of the HM10-50: Lower your electricity costs, protect the environment, and enjoy independence from rising energy prices. Invest in the future – with the HM10-50!
IP66 Protection Class
Extremey robust IP66-rated enclosure enables setup at most installation locations
Seamless Emergency Power
<10 ms to switch seamlessly from grid operation to emergency power operation in case of blackout or planned switch-off
Temperature Resistance
Installed active heating foils protect battery cells from low temperatures down to -25°C - even on very cold Winter days
ESY SUNHOME APP
Die ESY SUNHOME APP ist die perfekte Anwendung, um die volle Kontrolle über die Speicherung von Energie zu behalten. Benutzerfreundliche Einfachheit, höchster Betriebskomfort, gesteigerte Sicherheit und absolute Stabilität des System überzeugen unsere zufriedenen Kunden.
iOS
Android
Specifications
| PV maximum input power | 15 kW |
| PV rated input voltage | 600 V |
| PV maximum input voltage | 1.100 V |
| PV input MPPT voltage range | 160 V ~ 1000 V |
| PV maximum input current | 15 A / 15 A |
| PV input maximum short circuit current | 20 A / 20 A |
| MPPTs | 2 |
| Battery Capacity | 50 kWh |
| Battery rated operating voltage | 450 V |
| Battery voltage range | 380 V ~ 560 V |
| Battery protection | BMS / Software / Hardware / Sicherung |
| Battery Voltage | high voltage |
| Output Power Inverter | 10 kW |
| Maximale scheinbare Ausgangsleitung | 10 kVA |
| AC Rated Output Power (Notstrom) | 400 V |
| AC rated output frequency (backup) | 50/60 Hz |
| AC rated output current (backup) | 15 A |
| AC maximum output current (backup) | 15 A |
| AC output switching time (backup) | ≤ 10 ms |
| AC input maximum apparent power (grid) | 15 kVA |
| AC input grid type | 400 V 3L/N/PE |
| AC maximum input current | 22,8 A |
| AC grid input voltage range | 320 V ~ 480 V |
| AC rated output power (grid) | 10 kW |
| Number of Phases | three phase |
