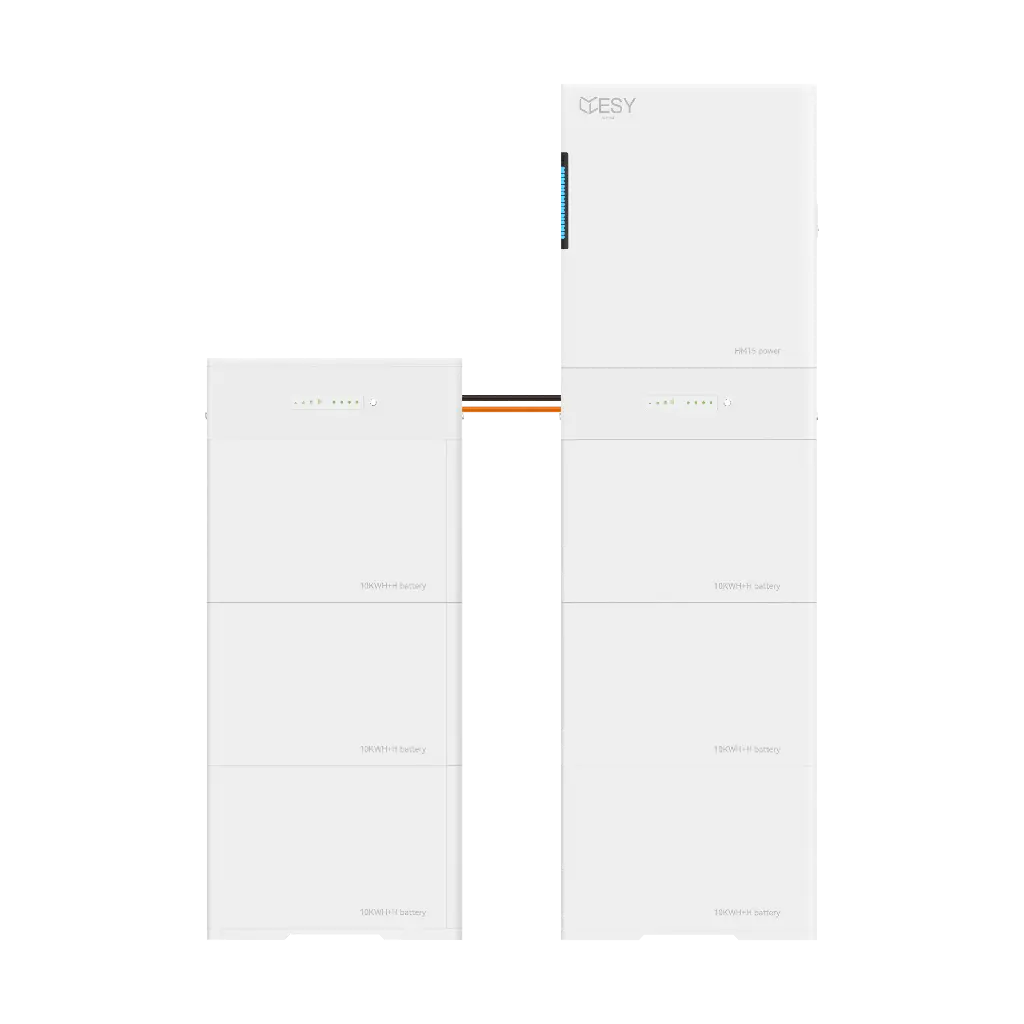

HM15-60 PV Inverter 15 kW with Battery 60 kWh, 3 Phase

https://www.acada.eu/web/image/product.template/54309/image_1920?unique=e1ec4e0

The HM15 series is the perfect solution for anyone looking to reduce their energy costs while living in an environmentally friendly way. This innovative solar system offers an efficient way to convert solar energy into usable electrical energy. With an impressive output of 15 kilowatts and a storage capacity of 10-90 kilowatt-hours, the HM15 is ideal for use in households and farms that want to sustainably reduce their electricity costs.

Thanks to its compact design and modern aesthetics, the HM15 blends harmoniously into any environment. The high-quality craftsmanship and durable materials ensure a long lifespan and reliability. The easy installation allows you to get the system up and running quickly and effortlessly.

The HM15 is not only powerful but also extremely user-friendly. With intelligent control, you can optimize energy consumption in your home and efficiently utilize the generated electricity. Additionally, the system is equipped with various safety features that ensure safe operation.

Embrace renewable energy and take advantage of the benefits of the HM15. Reduce your electricity costs, protect the environment, and enjoy independence from rising energy prices. Invest in the future – with the HM15!

The product is exempt from sales tax according to §12 Abs. 3 UstG, provided that the conditions set by the legislator are met. Please contact us.


  • PV maximum input power
  • PV rated input voltage
  • PV maximum input voltage
  • PV input MPPT voltage range
  • PV maximum input current
  • PV input maximum short circuit current
  • MPPTs
  • Battery Capacity
  • Battery rated operating voltage
  • Battery voltage range
  • Battery protection
  • Battery Voltage
  • Output Power Inverter
  • Maximale scheinbare Ausgangsleitung
  • AC Rated Output Power (Notstrom)
  • AC rated output frequency (backup)
  • AC rated output current (backup)
  • AC maximum output current (backup)
  • AC output switching time (backup)
  • AC input maximum apparent power (grid)
  • AC Input grid type
  • AC maximum input current
  • AC grid input voltage range
  • AC rated output power (grid)
  • Number of Phases

This combination does not exist.

Kontaktiere uns für eine Anfrage

Terms and Conditions




Technische Daten


Batterie Typ

IFpP

Zyklen

>3.000 Zyklen 25°C

Effizienz Konversion

98,2 %

Effizienz MPPT

99,9 %

Montage

Stapeln, stehend

Kommunikation

WiFi / Bluetooth / 4G

APP Support

iOS / Android / Web

Kühlung

Luftkühlung

Betriebstemperatur

-25°C  ~ +60°C

Feuchtigkeit

0 % ~ 100 % relative Luftfeuchtigkeit

Lautstärke

≤ 45 dB

Schutz

IP66

Herstellergarantie

10 Jahre


PV Input


Max. Input Power

30 kW

Rated Input Voltage

650 Vd.c.

Max. Input Voltage

1.000 Vd.c.

MPPT Voltage Range

160 Vd.c. ~ 1.000 Vd.c.

PV Max. Input Current

16 Ad.c. / 32 Ad.c.

Max. Short Circuit Current

24 Ad.c. / 48 Ad.c.

MPPT​

2


Backup (AC Output)


Rated Output Power

20 kW

Max. Apparent Output Power

20 kVA

Rated Output Voltage

400 Va.c. 3L/N/PE

Rated Output Current

29.0 Aa.c.

Max. Output Current

29.0 Aa.c.

Rated Output Frequency

50/60 Hz

Current Harmonics

≤ 3% (Linear Load)

Switching Time

≤ 10 ms


Battery


Rated Operating Voltage

450 Vd.c.

Voltage Range

380 Vd.c. ~ 560 Vd.c.

Protection

BMS / Software / Hardware / Fuse

Protection


Anti-islanding Protection

Yes

PV Reverse Polarity Protection

Yes

Insulation Resistance Detection

Yes

Residual Current Detection

Yes

Output Overcurrent Protection

Yes

Output Short Circuit Protection

Yes

Battery Reverse Polarity Protection

Yes


AC Input (Grid)


Max. Input Apparent Power

30 kVA

Grid Type

400 Va.c. 3L/N/PE

Max. Input Current

40 Aa.c.

Input Voltage Range

320 Va.c. ~ 480 Va.c.

Input Frequency Range

50/60 Hz


AC Output (Grid)


Rated Output Power

20 kW

Max. Output Apparent Power

22 kVA

Rated Output Voltage

400 Va.c 3L/N/PE

Rated Output Current

29.0 Aa.c.

Max. Output Current

31.8 Aa.c.

Rated Output Frequency

50/60 Hz

Current Harmonics

≤ 3% (@Rated Power)

Power Factor Range

0.8 leading ~ 0.8 lagging


ESY SUNHOME APP

Die ESY SUNHOME APP ist die perfekte Anwendung, um die volle Kontrolle über die Speicherung von Energie zu behalten. Benutzerfreundliche Einfachheit, höchster Betriebskomfort, gesteigerte Sicherheit und absolute Stabilität des System überzeugen unsere zufriedenen Kunden.

iOS

Android

Specifications

PV maximum input power 22,5 kWh
PV rated input voltage 600 V
PV maximum input voltage 1.100 V
PV input MPPT voltage range 160 V ~ 1000 V
PV maximum input current 15 A / 30 A
PV input maximum short circuit current 20 A / 40 A
MPPTs 2
Battery Capacity 60 kWh
Battery rated operating voltage 450 V
Battery voltage range 380 V ~ 560 V
Battery protection BMS / Software / Hardware / Sicherung
Battery Voltage high voltage
Output Power Inverter 15 kW
Maximale scheinbare Ausgangsleitung 15 kVA
AC Rated Output Power (Notstrom) 400 V
AC rated output frequency (backup) 50/60 Hz
AC rated output current (backup) 22,8 kW
AC maximum output current (backup) 22,8 A
AC output switching time (backup) ≤ 10 ms
AC input maximum apparent power (grid) 22.5 kVA
AC Input grid type 400 V 3L/N/PE
AC maximum input current 32.6 A
AC grid input voltage range 320 V ~ 480 V
AC rated output power (grid) 15 kW
Number of Phases three phase
