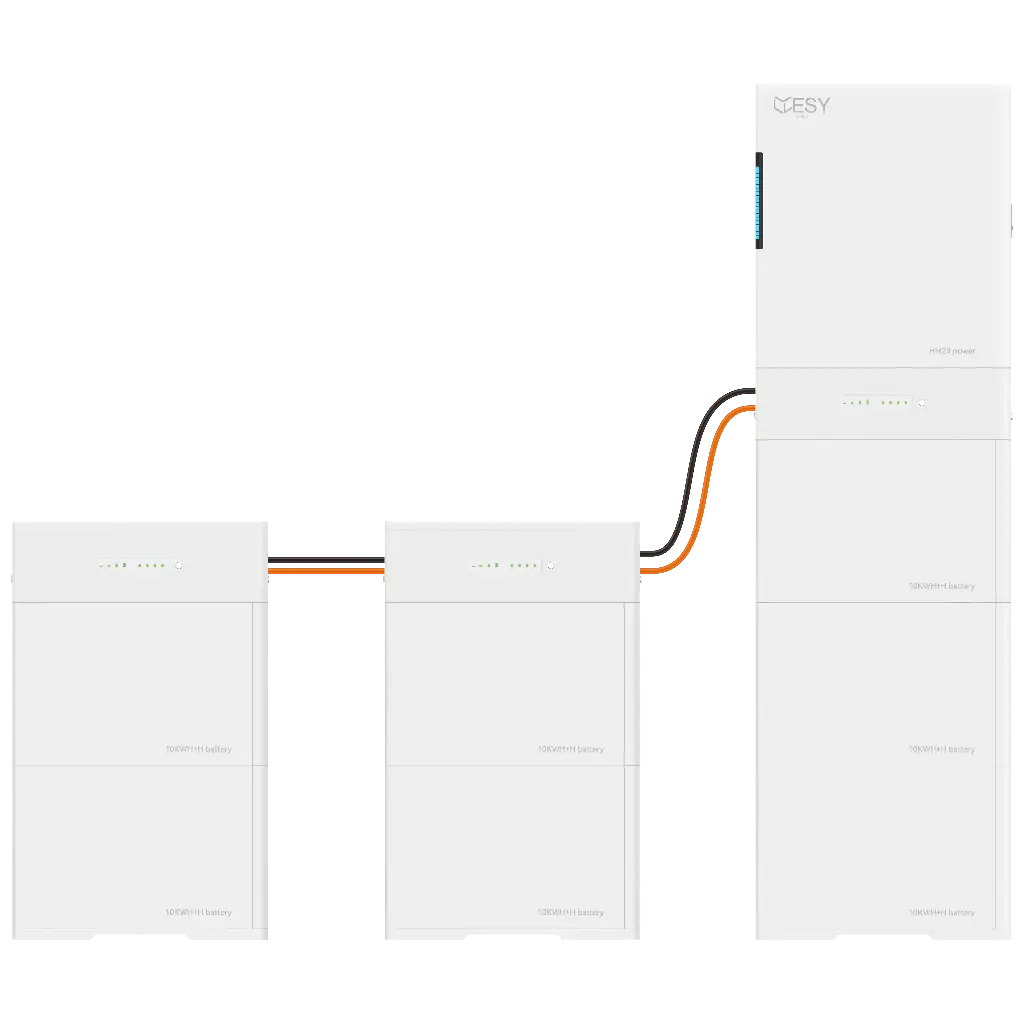

HM20-70 PV inverter with 20 kW output power and 70 kWh battery storage, 3 phases

Stacked Elements

• 8

PV maximum input power

• 30 kW

PV rated input voltage

• 650 V

PV maximum input voltage

• 1.000 V

PV input MPPT voltage range

• 160 V ~ 950 V

PV maximum input current

• 16 A / 32 A

PV input maximum short circuit current

• 24 A / 48 A

MPPTs

• 2

Battery Capacity

• 70 kWh

Battery rated operating voltage

• 450 V

Battery voltage range

• 380 V ~ 560 V

Battery protection

• BMS / Software / Hardware / Sicherung

Battery Voltage

• high voltage

Output Power Inverter

• 20 kW

Maximale scheinbare Ausgangsleitung

• 20 kVa

AC Rated Output Power (Notstrom)

• 400 V

AC rated output frequency (backup)

• 50/60 Hz

AC rated output current (backup)

• 29.0 A

AC maximum output current (backup)

• 29.0 A

AC output switching time (backup)

• ≤ 10 ms

AC Output Power Set

• 20 kW

AC input maximum apparent power (grid)

• 30 kVA

AC input grid type

• 400 V 3L/N/PE

AC maximum input current

• 40 A

AC grid input voltage range

• 320 V ~ 480 V

AC rated output power (grid)

• 20 kW

Number of Phases

• three phase

Mieterstrom geeignet
