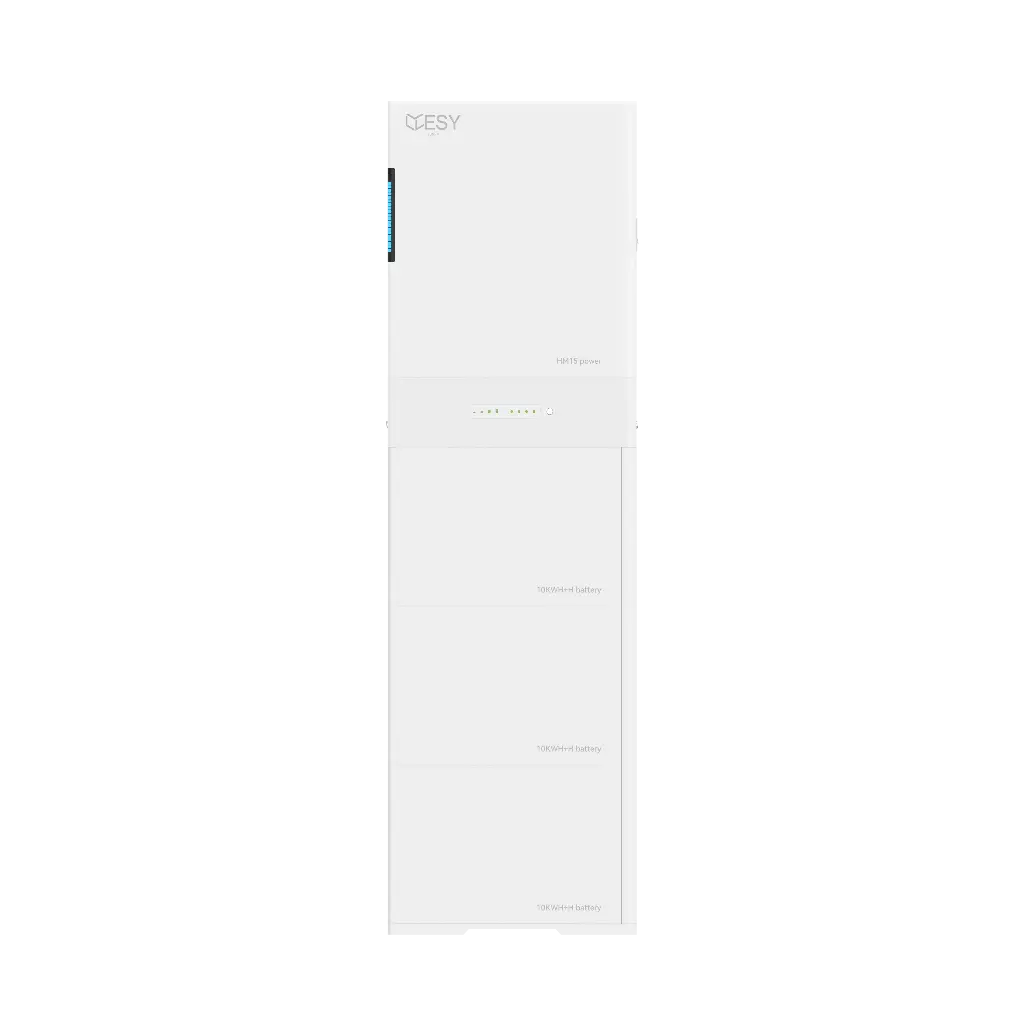

HM15-30 PV inverter with 15 kW output power and 30 kWh battery storage, 3 phases

(0 review)
30 kWh 15 kW three phase

Solid 30 kWh solution – for larger homes or small enterprises.

16,429.00 € 16,429.00 € (Tax excluded)
16,429.00 € (Tax excluded)

  • Dimensions
  • Stacked Elements
  • PV maximum input power
  • PV rated input voltage
  • PV maximum input voltage
  • PV input MPPT voltage range
  • PV maximum input current
  • PV input maximum short circuit current
  • MPPTs
  • Battery Capacity
  • Battery rated operating voltage
  • Battery voltage range
  • Battery protection
  • Battery Voltage
  • Output Power Inverter
  • Maximale scheinbare Ausgangsleitung
  • AC Rated Output Power (Notstrom)
  • AC rated output frequency (backup)
  • AC rated output current (backup)
  • AC maximum output current (backup)
  • AC output switching time (backup)
  • AC input maximum apparent power (grid)
  • AC input grid type
  • AC maximum input current
  • AC grid input voltage range
  • AC rated output power (grid)
  • Number of Phases

This combination does not exist.

Add to cart
Add to wishlist
Request Quote
Contact Us
Warranty incl.
Fast Shipping
CE Certified
Expert Consulting
The HM15 series is the perfect solution for anyone looking to reduce their energy costs while living in an environmentally friendly way. This innovative solar system offers an efficient way to convert solar energy into usable electrical energy. With an impressive output of 15 kilowatts and a storage capacity of 10-90 kilowatt-hours, the HM15 is ideal for use in households and farms that want to sustainably reduce their electricity costs.

Thanks to its compact design and modern aesthetics, the HM15 blends harmoniously into any environment. The high-quality craftsmanship and durable materials ensure a long lifespan and reliability. The easy installation allows you to get the system up and running quickly and effortlessly.

The HM15 is not only powerful but also extremely user-friendly. With intelligent control, you can optimize energy consumption in your home and efficiently utilize the generated electricity. Additionally, the system is equipped with various safety features that ensure safe operation.

Embrace renewable energy and take advantage of the benefits of the HM15. Reduce your electricity costs, protect the environment, and enjoy independence from rising energy prices. Invest in the future – with the HM15!

The product is exempt from sales tax according to §12 Abs. 3 UstG, provided that the conditions set by the legislator are met. Please contact us.


Your Individual Complete System

Configure your PV system with matching storage — free and without obligation

Configure PV System with Storage

Put together your photovoltaic system with matching battery storage — individually calculated based on location, roof area and consumption.

Configure now
Retrofit Storage

Already have a PV system? Find the right battery storage — matched to your existing system and your needs.

Find storage
Maximum Performance

Highly efficient energy solutions for maximum self-consumption

Warranty Included

10 years manufacturer warranty on all storage products

Professional Installation

By certified specialists near you

Personal Consulting

Individual consulting for your energy project

Specifications

Energy Storage
PV maximum input power 22,5 kWh
PV rated input voltage 600 V
PV maximum input voltage 1.100 V
PV input MPPT voltage range 160 V ~ 1000 V
PV maximum input current 15 A / 30 A
PV input maximum short circuit current 20 A / 40 A
MPPTs 2
Battery Capacity 30 kWh
Battery rated operating voltage 450 V
Battery voltage range 380 V ~ 560 V
Battery protection BMS / Software / Hardware / Sicherung
Battery Voltage high voltage
Output Power Inverter 15 kW
Maximale scheinbare Ausgangsleitung 15 kVA
AC Rated Output Power (Notstrom) 400 V
AC rated output frequency (backup) 50/60 Hz
AC rated output current (backup) 22,8 kW
AC maximum output current (backup) 22,8 A
AC output switching time (backup) ≤ 10 ms
AC input maximum apparent power (grid) 22.5 kVA
AC input grid type 400 V 3L/N/PE
AC maximum input current 32.6 A
AC grid input voltage range 320 V ~ 480 V
AC rated output power (grid) 15 kW
Number of Phases three phase
Others
Dimensions 660 x 270 x 2098 mm
Stacked Elements 4
Physical Properties
Weight 350 kg
