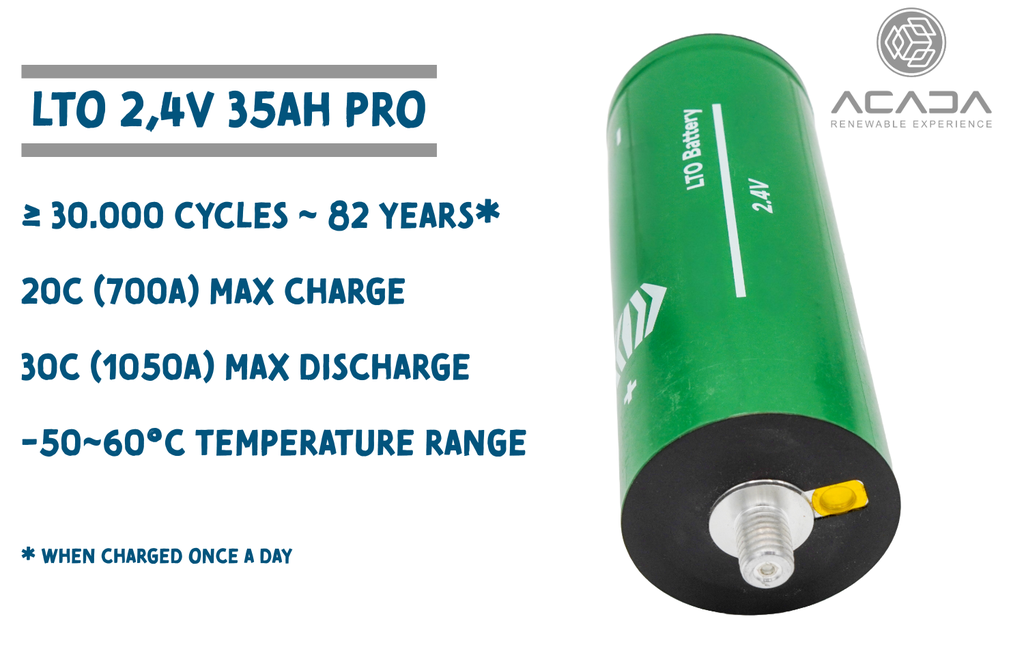

Batteriezelle LTO 2,3V 35Ah PRO - M12

Important Notice

Please note: This is a Lithium-Titanium-Oxide Battery (LTO), not a standard Lithium-Ion battery!

Advantages of the PRO Version:

• Significantly Extended Lifespan: Offers up to 30,000 charge cycles for prolonged use.
• Substantially Increased Charge Rate: Allows charging at rates up to 20C, enabling exceptionally fast energy replenishment.
• Enhanced Discharge Rate: Supports 30C maximum discharge currents for efficient power delivery in demanding applications.

Product Features

The Lithium Titanate Battery represents an innovative advancement over traditional Lithium-Ion technology. It is characterized by superior safety features, an extraordinarily high discharge rate, and a remarkably long lifespan.

• High Performance: The maximum discharge rate reaches an impressive 30C, allowing for rapid charging and discharging.
• Longevity: With over 30,000 charge cycles, this battery offers a lifespan up to ten times longer than traditional Lithium-Ion batteries.
• Excellent Temperature Resistance: The battery performs exceptionally well even at extremely low temperatures, down to -50°C.
• Increased Safety: The risk of explosion or fire is significantly minimized.

Applications:

• Solar storage (extremely durable and safe)
• Car Hi-Fi systems (eliminates the need for capacitors)
• Campers and Caravans (temperature resistant)
• Starter batteries (capable of very high currents)
• Marine batteries
• UPS systems
• Various industrial applications
• Energy solutions for renewable sources and power grids

Technical Specifications:

• Weight: ≤ 1060g
• Nominal Capacity: 35Ah @ 1C (35A)
• Nominal Voltage: 2.3V
• Nominal Energy: 80.5Wh
• Energy Density: 76 Wh/kg
• Resistance: ≤0.3mΩ (AC, 1000Hz)
• Cycle life (80% DOD): ≥ 30,000 cycles
• Charging cut-off voltage: 2.7V
• Discharging cut-off voltage: 1.5V
• Standard charging current: 1C (35A)
• Standard discharging current: 1C (35A)
• Max. constant charging current: 6C (210A)
• Max. constant discharging current: 6C (210A)
• Max. charging current: 20C (700A)
• Max. discharging current: 30C (1050A)
• Temperature range for storage:
  • Less than one year: -10~25°C
  • Less than three months: -30~45°C
• Temperature range for operation:
  • Charging temperature: -40~60°C
  • Discharging Temperature: -50~60°C
